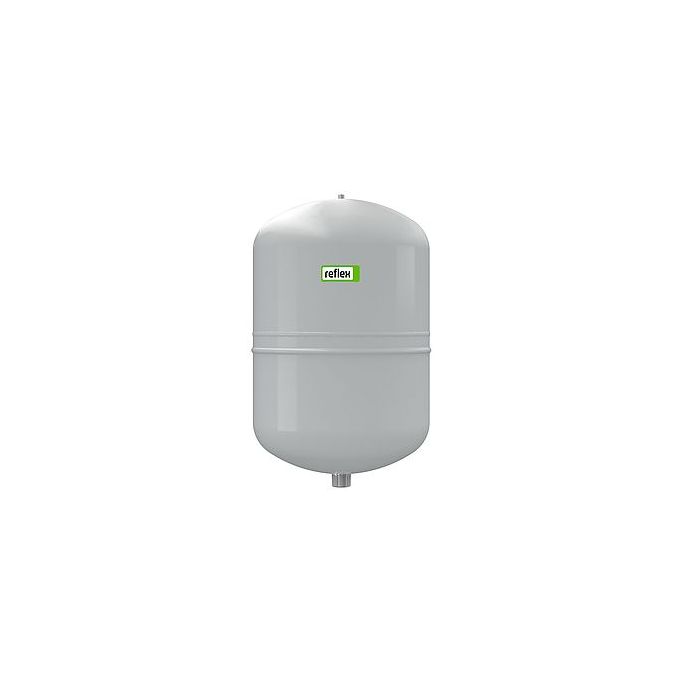

Reflex NG 12 Welded Diaphragm Expansion Vessel - 12 Litre

Part Number:
8240100
This item is now obsolete. Please view our alternatives below.
£37.60 £31.33
Reflex Reflex NG 12 Diaphragm expansion tank for sealed heating and cooling water systems. Vessels are fitted according to Reflex company standard CS-004 based on DIN EN 13831. Approval according to Pressure Equipment Directive 2014/68/EC.
1 year warranty With This Product

Reflex Reflex NG 12 Diaphragm expansion tank for sealed heating and cooling water systems. Vessels are fitted according to Reflex company standard CS-004 based on DIN EN 13831. Approval according to Pressure Equipment Directive 2014/68/EC.

  • Durable epoxy resin coating
  • Welded design
  • Non-replaceable diaphragm according to DIN EN 13831
  • 35 litres and above upright
  • For antifreeze additive of at least 25 – 50 %
  • With threaded connections
  • max. permissible system temperature 120 °C
  • Max. operating temperature 70 °C

Type: NG 12
Colour: grey
Diaphragm material:
Nominal volume: 12 l
Max. useful volume: 10.8 l
Max. permissible system temperature: 120 °C
Min. perm. operating temperature : -10 °C
Max. perm. operating temperature: 70 °C
Max. perm. operating pressure: 6 bar
Factory provided gas supply pressure: 1.5 bar
Connection: R 3/4"
Diameter: 280 mm
Height: 275 mm
Tilt dimension approx.: 392 mm
Weight: 2.26 kg

More Information
Price £31.33
Manufacturer Reflex
Warranty 1 year warranty
Capacity 12Ltr
Pump Type Expansion Vessel
Layout Vertical
Diameter 280mm
Height 275mm
Next Day Delivery No
Manufacturers Part Number 8240100
