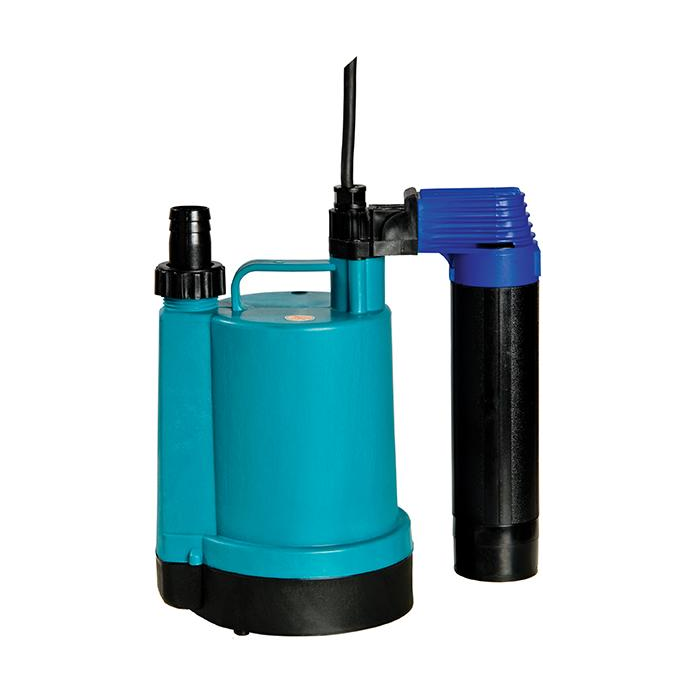

Tsurumi BPS-100V Submersible Drainage Pump - Automatic - 230v
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
The Tsurumi BPS-100V Submersible Drainage Pump (Part No. 15-10-1019) is a versatile and efficient automatic pump designed for a variety of drainage applications. This 230V model offers a combination of reliability, performance, and convenience for both domestic and light industrial use.
Key Features and Specifications
Design and Construction
The BPS-100V is manufactured using durable thermoplastic materials, making it suitable for pumping clean to slightly dirty water. It features a top discharge design, allowing for use in partial immersion scenarios or areas with limited space.
Performance
- Maximum flow rate: 70 litres per minute
- Maximum head: 6.5 metres
- Power: 0.10 kW
Automatic Operation
This model is equipped with a tube-type float switch, specifically designed for narrow sump applications. The pump automatically activates when the water level reaches approximately 300mm and shuts off at 150mm.
Durability
The pump incorporates a 304 stainless steel shaft, enhancing its durability and resistance to corrosion. It also features a carbon/ceramic mechanical seal housed in an intermediate oil chamber with an inner lip seal, providing excellent wear resistance and protection during short periods of dry running.
Versatility
The BPS-100V comes with both 19mm and 25mm outlet options, allowing for flexibility in various installation scenarios.
Applications
This submersible pump is ideal for:
- Basement drainage
- Flood control
- Light industrial use
- Domestic water removal
While it offers excellent reliability for many applications, it is not recommended for use in ponds or water features.
Additional Information
- Supplied with 10 metres of heavy-duty rubber power cable
- Free passage: 3mm
- Dimensions (W x L x H): 134 x 155 x 250 mm
- Dry weight: 2.70 kg
The Tsurumi BPS-100V combines efficient performance with user-friendly features, making it an excellent choice for those seeking a reliable automatic submersible drainage pump for various applications.
| Price | £102.96 |
|---|---|
| Manufacturer | Tsurumi |
| Warranty | 1 year warranty |
| Dimensions | 25 cm H x 13.4 cm W x 22.5 cm D |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Flow Rate | 70 Ltr/min |
| Max Head | 6.5m |
| Pump Operation | Automatic (with magnetic switch) |
| Water type | Clean or Discoloured |
| Pump Type | Submersible |
| Switch | Magnetic Switch |
| Duty Type | Domestic |
| Submersible vs Surface Mounted | Submersible |
| Next Day Delivery | Yes |
| Manufacturers Part Number | 15-10-1019 |
