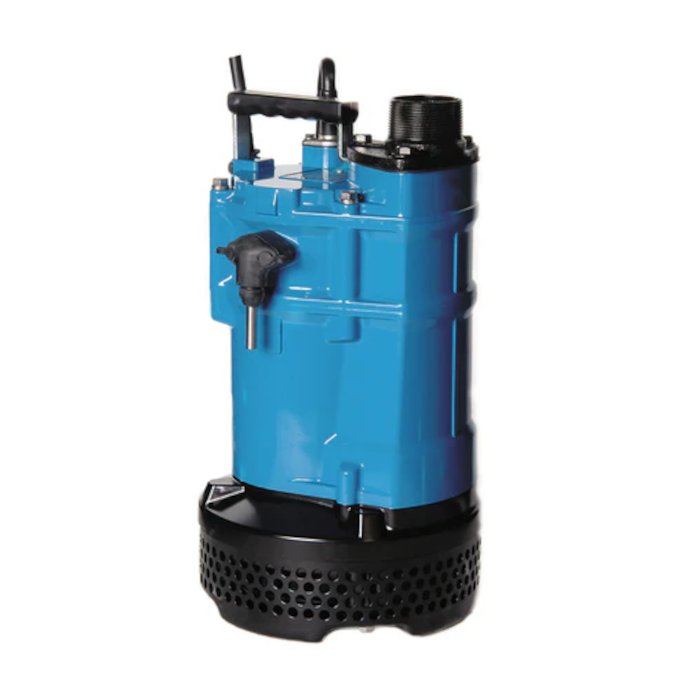

Tsurumi KTVE22.2 Drainage Pump – Automatic – 400v - Three Phase
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
The Tsurumi KTVE22.2 is a heavy-duty automatic submersible drainage pump designed for demanding site dewatering applications. This robust 400V three-phase pump offers efficient and reliable performance without the need for external control panels or float switches.
Key Features and Specifications
Automatic Operation:
The KTVE22.2 features an innovative built-in sensor probe mounted in a durable rubber bracket within the pump base footprint. This sensor automatically starts the pump when water reaches the probe level and continues operation for one minute after the water level drops below it.
Performance:
- Maximum flow rate: 525 litres per minute
- Maximum head: 24 metres
- Motor power: 2.2 kW
- Voltage: 400V three-phase
Construction:
- Outlet: 2" BSPM (British Standard Pipe Male) and 50mm
- Free passage: 8.5mm
- Dimensions: 240mm diameter x 486mm height
- Dry weight: 25 kg
Durability:
The pump features a cast-iron casing and motor frame, with a chromium iron open impeller for exceptional wear resistance against sand, silt, and slurry.
Applications
The Tsurumi KTVE22.2 is ideal for:
- Construction sites
- Quarries
- Industrial processes
- Tunnelling
- Mining operations
Its robust design and automatic operation make it particularly suitable for continuous-duty pumping in challenging environments where water may contain suspended solids.
| Price | £2,258.10 |
|---|---|
| Manufacturer | Tsurumi |
| Warranty | 1 year warranty |
| Dimensions | 48.6 cm H x 24 cm W x 24 cm D |
| Electrical supply | 400V |
| AC Power | Three Phase |
| Flow Rate | 525 Ltr/min |
| Max Head | 24m |
| Pump Operation | Automatic (with magnetic switch) |
| Water type | Dirty Water |
| Pump Type | Submersible |
| Switch | Magnetic Switch |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Submersible |
| Next Day Delivery | No |
| Manufacturers Part Number | 10-10-1037 |
