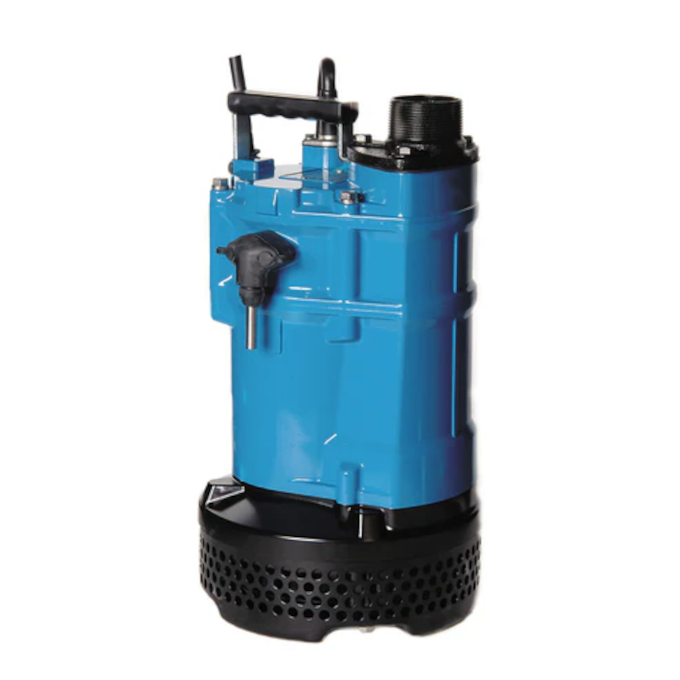

Tsurumi KTVE21.5 Drainage Pump – Automatic – 400v - Three Phase
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
The Tsurumi KTVE21.5 Drainage Pump is a high-performance, automatic submersible pump designed for efficient dewatering in construction and industrial applications. This three-phase, 400V model offers a robust solution for managing water and light slurries in challenging environments.
Key Features:
The KTVE21.5 is part of Tsurumi's KTVE series, which consists of submersible three-phase automatic portable drainage pumps. It incorporates an innovative electrode-type relay unit built into the pump, enabling automatic start and stop functionality to prevent dry running. This feature significantly reduces power consumption and extends the pump's operational lifespan.
Technical Specifications:
- Motor Output: 1.5 kW
- Discharge Bore: 50mm
- Phase: Three-phase
- Starting Method: Direct-on-line (D.O.L.)
- Solids Passage: 8.5mm
Design and Construction:
The pump features a top discharge, side flow design that ensures efficient motor cooling, even when operating with its motor exposed to air. Its slim profile allows for placement in confined spaces, making it ideal for various construction and foundation works.
Performance:
While lightweight for improved portability, the KTVE21.5 maintains the capacity to handle typical pumping tasks found on construction sites and in industrial settings. The automatic operation eliminates the need for external control panels and cumbersome float switches, simplifying installation and operation.
Applications:
This pump is well-suited for heavy-duty site drainage, dewatering applications, and general water transfer tasks in construction and industrial environments.
| Price | £2,077.14 |
|---|---|
| Manufacturer | Tsurumi |
| Warranty | 1 year warranty |
| Dimensions | 48.6 cm H x 24 cm W x 24 cm D |
| Electrical supply | 400V |
| AC Power | Three Phase |
| Flow Rate | 425 Ltr/min |
| Max Head | 20m |
| Pump Operation | Automatic (with magnetic switch) |
| Water type | Dirty Water |
| Pump Type | Submersible |
| Switch | Magnetic Switch |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Submersible |
| Next Day Delivery | No |
| Manufacturers Part Number | 10-10-1204 |
