Wilo Yonos GIGA2.0-D 65/1-16/3,0 Centrifugal Pump - 380v - Three Phase - 16 bar
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product

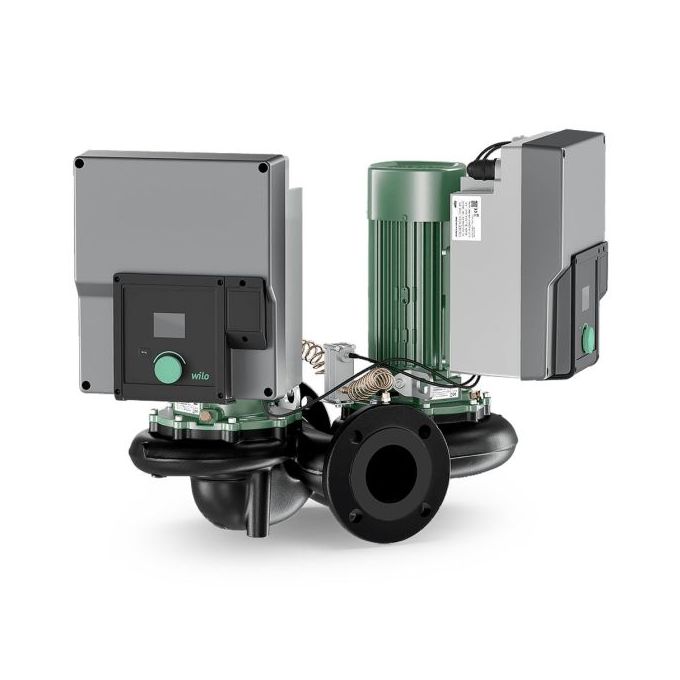

Wilo Yonos GIGA2.0-D 65/1-16/3.0 - A cutting-edge electronically controlled in-line glanded pump designed for unparalleled performance in pumping large volumes of water across extensive delivery heads. This pump is engineered with precision, featuring IE5 EC motor technology and proven pump hydraulics (MEI ≤ 0.4) to ensure exceptional energy efficiency and reliability.
Efficiency is at the forefront of the Yonos GIGA2.0-D, thanks to its IE5 EC motor technology and hydraulics with a minimum efficiency index (MEI) equal to or less than 0.4. The Green Button Technology, coupled with a user-friendly menu navigation system and a clear colour display, makes it incredibly easy to operate.
Reliability is guaranteed with innovative drive technology and well-established pump hydraulics. The Yonos GIGA2.0-D is designed for seamless integration into building automation systems, offering both analogue and digital interfaces. The CIF module ensures smooth communication for enhanced control and monitoring.
Key Features:
- High energy efficiency with IE5 EC motor technology and MEI ≤ 0.4 pump hydraulics
- User-friendly operation with Green Button Technology, clear menu navigation, and a vivid colour display
- Unmatched reliability due to innovative drive technology and proven pump hydraulics
- Integration-ready for building automation systems with analogue and digital interfaces and CIF module
Design Details:
- Single-stage low-pressure centrifugal pump with a one-piece shaft in monobloc design
- In-line spiral housing with PN 16 flange according to EN 1092-2
- Mechanical seal for pumping water up to +120 °C with cataphoretic coating as standard
- Compatible with various connection voltages for versatile applications
- Control modes include variable differential pressure, constant differential pressure, constant speed, and user-defined PID control
The Yonos GIGA2.0-D is specifically tailored for pumping heating water, cold water, and water-glycol mixtures without abrasive substances in heating, air conditioning, and cooling systems. With its exceptional features and robust design, this pump stands out as a reliable and efficient solution for demanding pumping requirements.
Product Specifications:
- Nominal flange diameter: DN 65
- Mechanical seal: AQ1EGG
- Port-to-port length L0: 340 mm
- Rated power P2: 3 kW
- Phase: 3
- Article number: 2205886
- Blind flange: F
: Standard / Service
| Price | £7,315.75 |
|---|---|
| Manufacturer | Wilo |
| Warranty | 1 year warranty |
| Bars | 16 bar |
| Electrical supply | 380V |
| AC Power | Three Phase |
| Water type | Clean or Discoloured |
| Pump Type | Circulating Pump |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Inlet Connection | DN 65 |
| Outlet Connection | DN 65 |
| Next Day Delivery | No |
| Port To Port | 340mm |
| Manufacturers Part Number | 2205886 |
