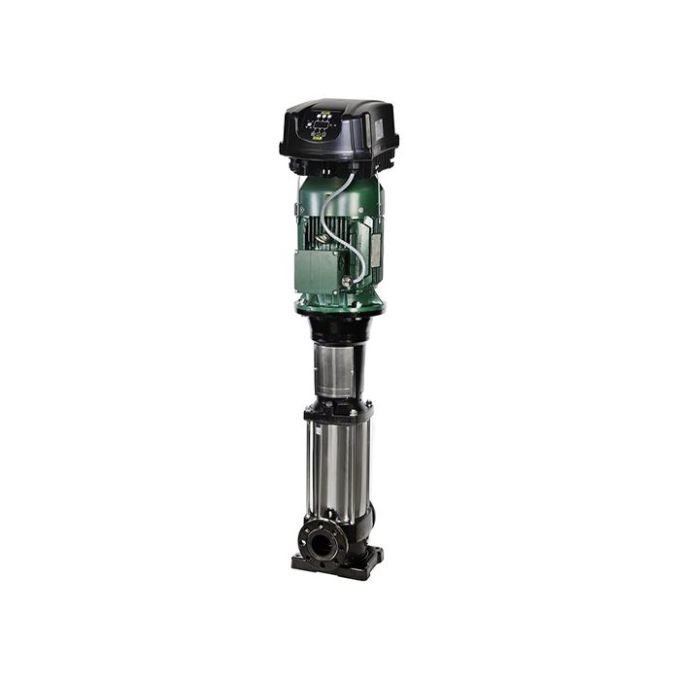

DAB NKVE 20/03 S 030 T MCE30/P-IE3 Multi-Stage Centrifugal Pump - 415v - Three Phase - 483 Ltr/min

Multi-impeller vertical centrifugal pumps in AISI 304 stainless steel with coupling with MCE-P variable frequency drive installed, designed for pressurization activities in civil and commercial building service, in agriculture and in irrigation systems, in washing systems.

The pumps are particularly versatile, thanks to the use of the MCE-P variable frequency drive, which ensures performance levels capable of automatically adapting to the different needs of the system, keeping a constant pressure. All parts in contact with the liquid are in AISI 304 stainless steel (on request in AISI 316 stainless steel, for X versions).

Standardized flanges and standard-sized center distances to facilitate pump replacement. Removable cartridge mechanical seal, it is removable without removing the motor.

Construction Features Of The Pump

 The use of advanced stainless steel processing technologies for the main hydraulic components helps to achieve very high performance levels. The pumps are extremely versatile, thanks to the center distance of the in-line ports, designed to maximize interchangeability. The parts in contact with the liquid are made of AISI 304 stainless steel for NKV S models, or AISI 316 stainless steel for NKV X models (only available in special order). Round flanges as standard (oval, loose, virtual, clamp available on request). The mechanical seal is made of standard E1 = Graphite/Silicon Carbide/AISI 316/EPDM = BQGE. FKM/Viton available on request. Starting from 5,5 kW models, the seal can be removed without removing the motor. Rigid coupling.

Construction Features Of The Motor

Air-cooled asynchronous motor. Standard two-pole motor, IE3 50 Hz 0,75 kW or IE2, IE3 60 Hz 0,75 KW. Motor frame B14 up to 4 kW motor size, motor frame B5 from 5,5 kW motor size.

Construction Features Of The Electronics

The use of the MCE-P variable frequency drive has many advantages: better comfort thanks to the constant pressure at the variation of demand (pressure sensor installed as standard), increased efficiency, energy savings, protection from hammering effects, simpler configuration thanks to the display. It makes it possible to set a setpoint in case of units with several pumps (each with MCE-P variable frequency drive), or to start a different pump at each restart or at set intervals. It must be installed on the motor fan cover, also to take advantage of its cooling capabilities.
