Trebles BoostBox Cat 5 Booster Set - 18L Tank - Single Pump - 10 Bar - 44m Head
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
2 years warranty With This Product

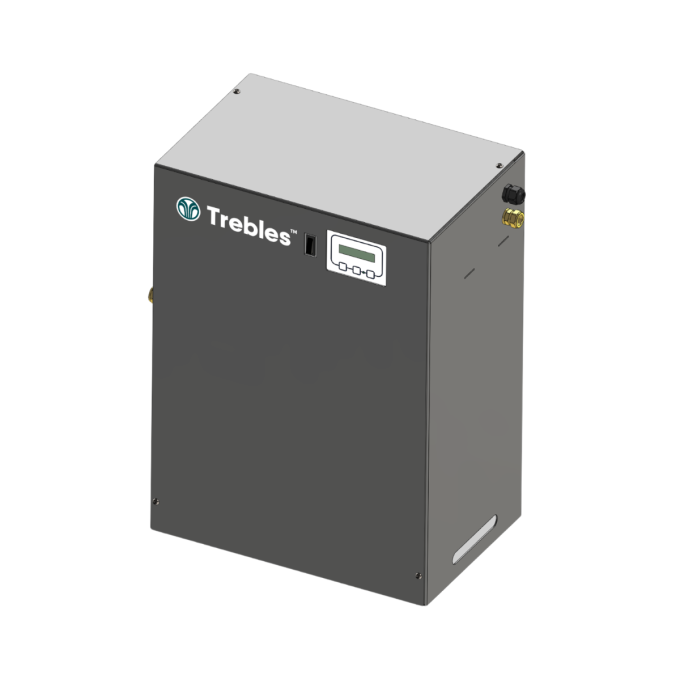

Trebles BoostBox 5236-130 Cat5 Single Pump Booster Set
The Trebles BoostBox 5236-130 is a compact Category 5 cold water booster set designed to provide reliable boosted water pressure where space is limited and compliant backflow protection is required. Supplied as a neatly packaged wall or floor mounted unit, it combines a fixed speed single pump, integrated 18 Litre AB Air Gap break tank, digital controller, and solenoid fill arrangement for straightforward installation and dependable day-to-day operation.
This model offers up to 44m Pmax, a maximum operating pressure of 35m, and maximum flow up to 33 L/min, making it a practical solution for smaller boosted cold water applications. Solenoid fill is supplied as standard to help the unit cope more effectively with sustained demand, while dry run protection, error logging, password protection, mains isolator switch, and volt-free contacts for BMS connectivity are also included as standard.
With its compact packaged design, aluminium enclosure, polyethylene tank, and 15mm compression inlet and outlet connections, the BoostBox 5236-130 provides a space-saving Cat5 booster solution for installations where a larger traditional break tank booster set would be unnecessary.
The Trebles BoostBox is a strong alternative to the Lowara MiniFix, Arrow Valves Midi-Break, and Dutypoint MiniBreak, with the added benefit of higher pressure and twin pump options.
Key Product Features
- Category 5 cold water booster set
- Single pump fixed speed configuration
- 18 Litre AB Air Gap break tank
- Wall or floor mounted installation
- Maximum flow up to 33 L/min
- Pmax 44m
- Maximum operating pressure 35m
- Solenoid fill as standard
- Digital controller included
- Dry run protection
- Error logging and password protection
- BMS connectivity via volt-free contacts
- 230/1/50 supply
- 15mm compression inlet and outlet
| Price | £1,651.43 |
|---|---|
| Manufacturer | Trebles |
| Warranty | 2 years warranty |
| Bars | 10 bar |
| Impeller Type | Single |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Capacity | 18Ltr |
| Speed | Fixed |
| Pressure Rating | 10 Bar |
| Flow Rate | 33 Ltr/min |
| Max Head | 44m |
| Water type | Clean or Discoloured |
| Duty Type | Domestic |
| Pump Type | Booster Set |
| Next Day Delivery | No |
| Inlet Connection | 15mm |
| Outlet Connection | 15mm |
| Manufacturers Part Number | 5236-130 |
