Trebles BoostBox Cat 5 Booster Set - 18L Tank - Single Pump - 10 Bar - 86m Head
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
2 years warranty With This Product

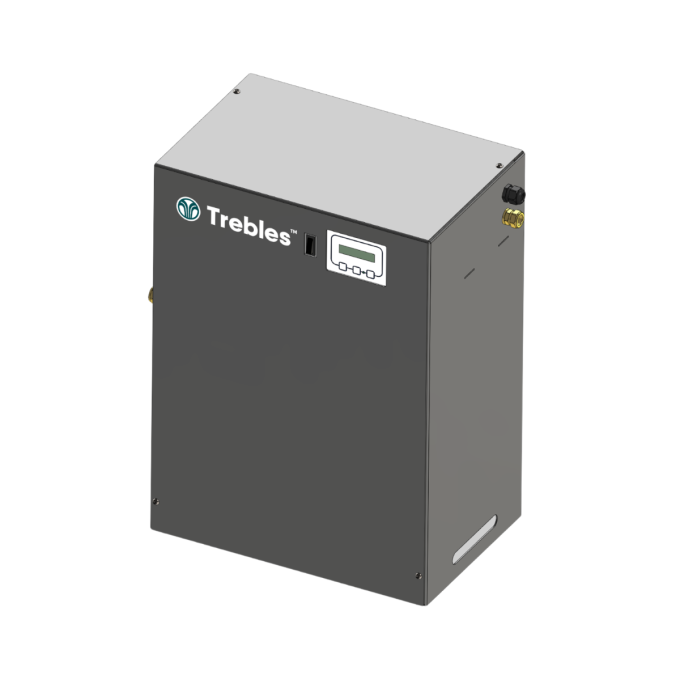

Trebles BoostBox 5236-160 Cat5 High Pressure Single Pump Booster Set
The Trebles BoostBox 5236-160 is the high pressure single pump version within the BoostBox range, designed for applications that require a compact packaged Category 5 booster set with stronger pressure performance. Suitable for wall or floor mounting, the unit combines a fixed speed single pump, integrated 18 Litre AB Air Gap break tank, digital controller, and solenoid fill system within one enclosed assembly.
This model delivers up to 86m Pmax, a maximum operating pressure of 60m, and maximum flow up to 17 L/min. Factory set to 8.0 Bar with a 1.0 Bar differential, it is well suited to installations needing higher boosted pressure in a compact format. Solenoid fill is included as standard to support more sustained demand, while dry run protection, error logging, password protection, mains isolator switch, and BMS-ready volt-free contacts are all built in.
With its neat enclosed construction, 15mm compression inlet and outlet connections, and integrated Category 5 AB Air Gap protection, the BoostBox 5236-160 offers a practical high pressure solution where space, compliance, and packaged simplicity are all important considerations.
The Trebles BoostBox is a strong alternative to the Lowara MiniFix, Arrow Valves Midi-Break, and Dutypoint MiniBreak, with the added benefit of higher pressure and twin pump options.
Key Product Features
- Category 5 cold water booster set
- High pressure single pump fixed speed configuration
- 18 Litre AB Air Gap break tank
- Wall or floor mounted installation
- Maximum flow up to 17 L/min
- Pmax 86m
- Maximum operating pressure 60m
- Solenoid fill as standard
- Digital controller included
- Dry run protection
- Error logging and password protection
- BMS connectivity via volt-free contacts
- 230/1/50 supply
- 15mm compression inlet and outlet
| Price | £1,852.14 |
|---|---|
| Manufacturer | Trebles |
| Warranty | 2 years warranty |
| Bars | 10 bar |
| Impeller Type | Single |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Capacity | 18Ltr |
| Speed | Fixed |
| Pressure Rating | 10 Bar |
| Flow Rate | 17 Ltr/min |
| Max Head | 86m |
| Water type | Clean or Discoloured |
| Duty Type | Domestic |
| Pump Type | Booster Set |
| Next Day Delivery | No |
| Inlet Connection | 15mm |
| Outlet Connection | 15mm |
| Manufacturers Part Number | 5236-160 |
