Trebles BoostBox Cat 5 Booster Set - 18L Tank - Twin Pump - 10 Bar - 44m Head
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
2 years warranty With This Product

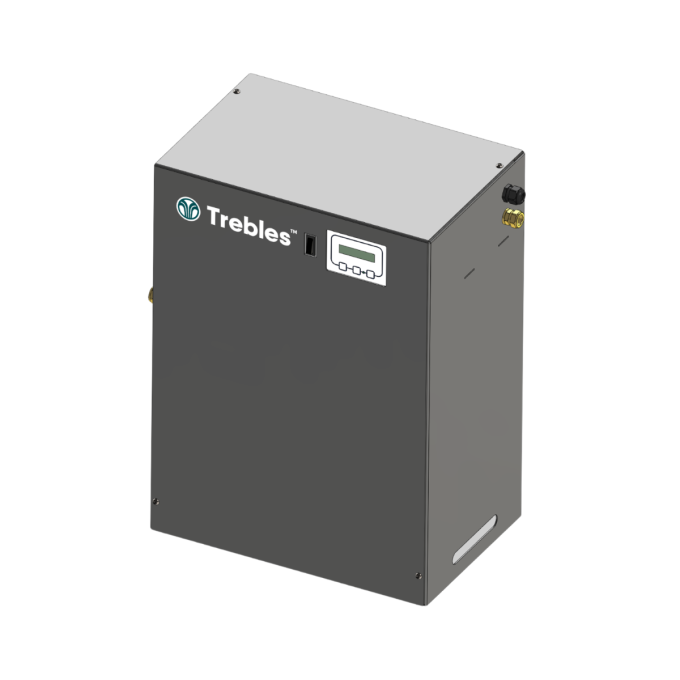

Trebles BoostBox 5236-230 Cat5 Twin Pump Booster Set
The Trebles BoostBox 5236-230 is a compact twin pump Category 5 booster set designed for boosted cold water applications where additional resilience is preferred. Supplied as a packaged wall or floor mounted unit, it incorporates twin fixed speed pumps, an integrated 18 Litre AB Air Gap break tank, digital controller, and solenoid fill system as standard.
This model offers up to 44m Pmax, a maximum operating pressure of 35m, and maximum flow up to 33 L/min. Unlike many compact break tank booster units that are limited to single pump only, the 5236-230 provides a twin pump duty/standby arrangement for improved continuity of service. The pumps automatically alternate during operation to help balance wear, and if one pump is unavailable the second pump can take over automatically.
With dry run protection, low water protection, error logging, password protection, mains isolator switch, and volt-free contacts for BMS connectivity included as standard, the BoostBox 5236-230 is a strong option for installations that want the reassurance of standby pump protection in a compact Cat5 compliant format.
The Trebles BoostBox is a strong alternative to the Lowara MiniFix, Arrow Valves Midi-Break, and Dutypoint MiniBreak, with the added benefit of higher pressure and twin pump options.
Key Product Features
- Category 5 cold water booster set
- Twin pump duty/standby configuration
- Automatic pump alternation
- 18 Litre AB Air Gap break tank
- Wall or floor mounted installation
- Maximum flow up to 33 L/min
- Pmax 44m
- Maximum operating pressure 35m
- Solenoid fill as standard
- Digital controller included
- Dry run and low water protection
- Error logging and password protection
- BMS connectivity via volt-free contacts
- 230/1/50 supply
- 15mm compression inlet and outlet
| Price | £2,112.86 |
|---|---|
| Manufacturer | Trebles |
| Warranty | 2 years warranty |
| Bars | 10 bar |
| Impeller Type | Twin |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Capacity | 18Ltr |
| Speed | Fixed |
| Pressure Rating | 10 Bar |
| Flow Rate | 33 Ltr/min |
| Max Head | 44m |
| Water type | Clean or Discoloured |
| Duty Type | Domestic |
| Pump Type | Booster Set |
| Next Day Delivery | No |
| Inlet Connection | 15mm |
| Outlet Connection | 15mm |
| Manufacturers Part Number | 5236-230 |
