Trebles BoostBox Cat 5 Booster Set - 18L Tank - Twin Pump - 10 Bar - 86m Head
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
2 years warranty With This Product

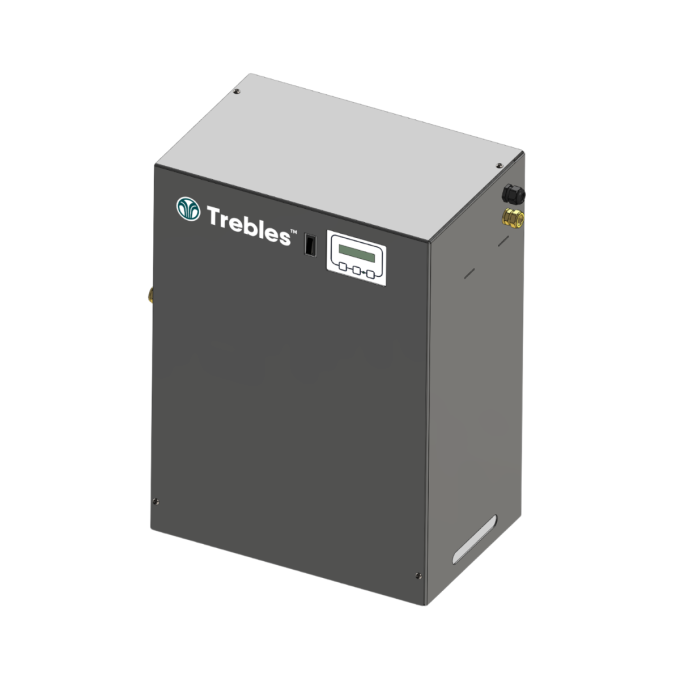

Trebles BoostBox 5236-260 Cat5 High Pressure Twin Pump Booster Set
The Trebles BoostBox 5236-260 is the high pressure twin pump model in the BoostBox range, combining compact packaged Category 5 compliance with the added benefit of standby pump resilience. Designed for wall or floor mounting, it features twin fixed speed pumps, an integrated 18 Litre AB Air Gap break tank, digital controller, and solenoid fill arrangement within one enclosed unit.
This model delivers up to 86m Pmax, a maximum operating pressure of 60m, and maximum flow up to 17 L/min, making it the highest pressure option in the BoostBox range. Factory set to 8.0 Bar with a 1.0 Bar differential, it is intended for applications needing stronger boosted pressure together with the reassurance of twin pump duty/standby operation. The pumps alternate automatically to support balanced wear, with automatic standby changeover if one pump is unavailable.
With solenoid fill as standard, integrated Category 5 AB Air Gap protection, dry run protection, error logging, password protection, mains isolator switch, and BMS-ready volt-free contacts, the BoostBox 5236-260 provides a compact and dependable packaged solution for more demanding boosted cold water installations.
The Trebles BoostBox is a strong alternative to the Lowara MiniFix, Arrow Valves Midi-Break, and Dutypoint MiniBreak, with the added benefit of higher pressure and twin pump options.
Key Product Features
- Category 5 cold water booster set
- High pressure twin pump duty/standby configuration
- Automatic pump alternation
- 18 Litre AB Air Gap break tank
- Wall or floor mounted installation
- Maximum flow up to 17 L/min
- Pmax 86m
- Maximum operating pressure 60m
- Solenoid fill as standard
- Digital controller included
- Dry run and low water protection
- Error logging and password protection
- BMS connectivity via volt-free contacts
- 230/1/50 supply
- 15mm compression inlet and outlet
| Price | £2,395.00 |
|---|---|
| Manufacturer | Trebles |
| Warranty | 2 years warranty |
| Bars | 10 bar |
| Impeller Type | Twin |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Capacity | 18Ltr |
| Speed | Fixed |
| Pressure Rating | 10 Bar |
| Flow Rate | 17 Ltr/min |
| Max Head | 86m |
| Water type | Clean or Discoloured |
| Duty Type | Domestic |
| Pump Type | Booster Set |
| Next Day Delivery | No |
| Inlet Connection | 15mm |
| Outlet Connection | 15mm |
| Manufacturers Part Number | 5236-260 |
